SWIFT MOBILE

SWIFT MOBILE

“ONTHE GO MACHINE  FOR EASIER LOCKSMITHING ”

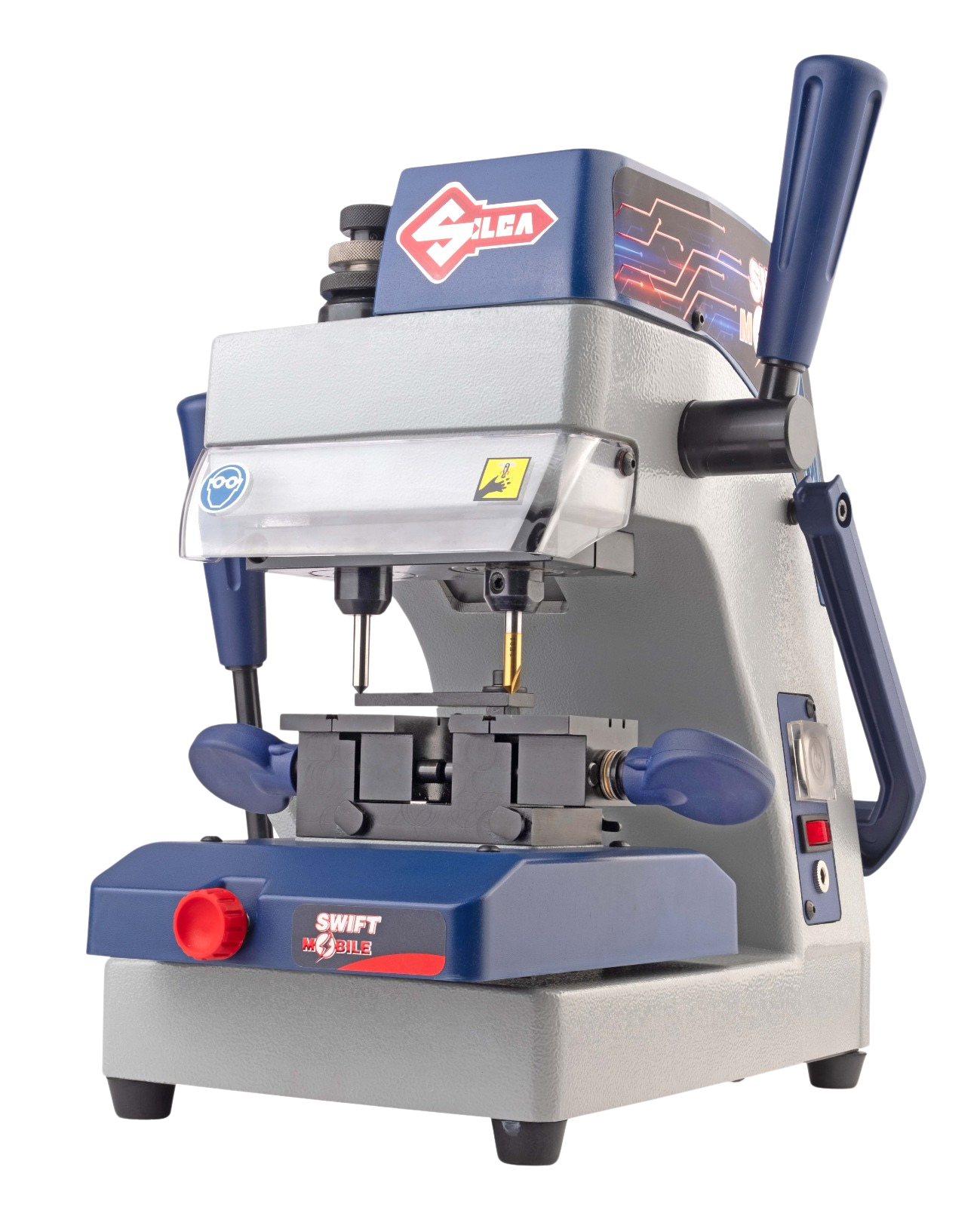

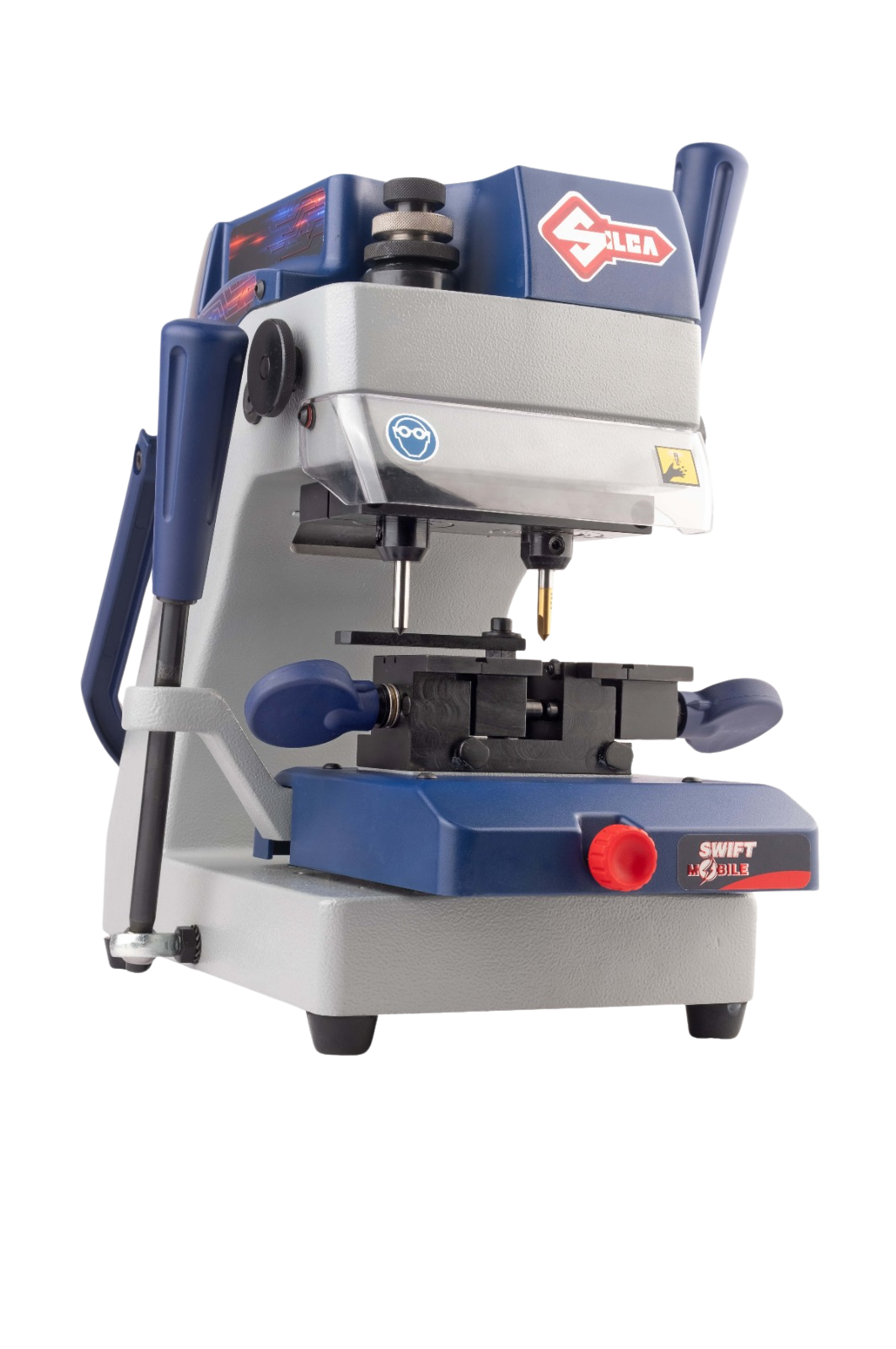

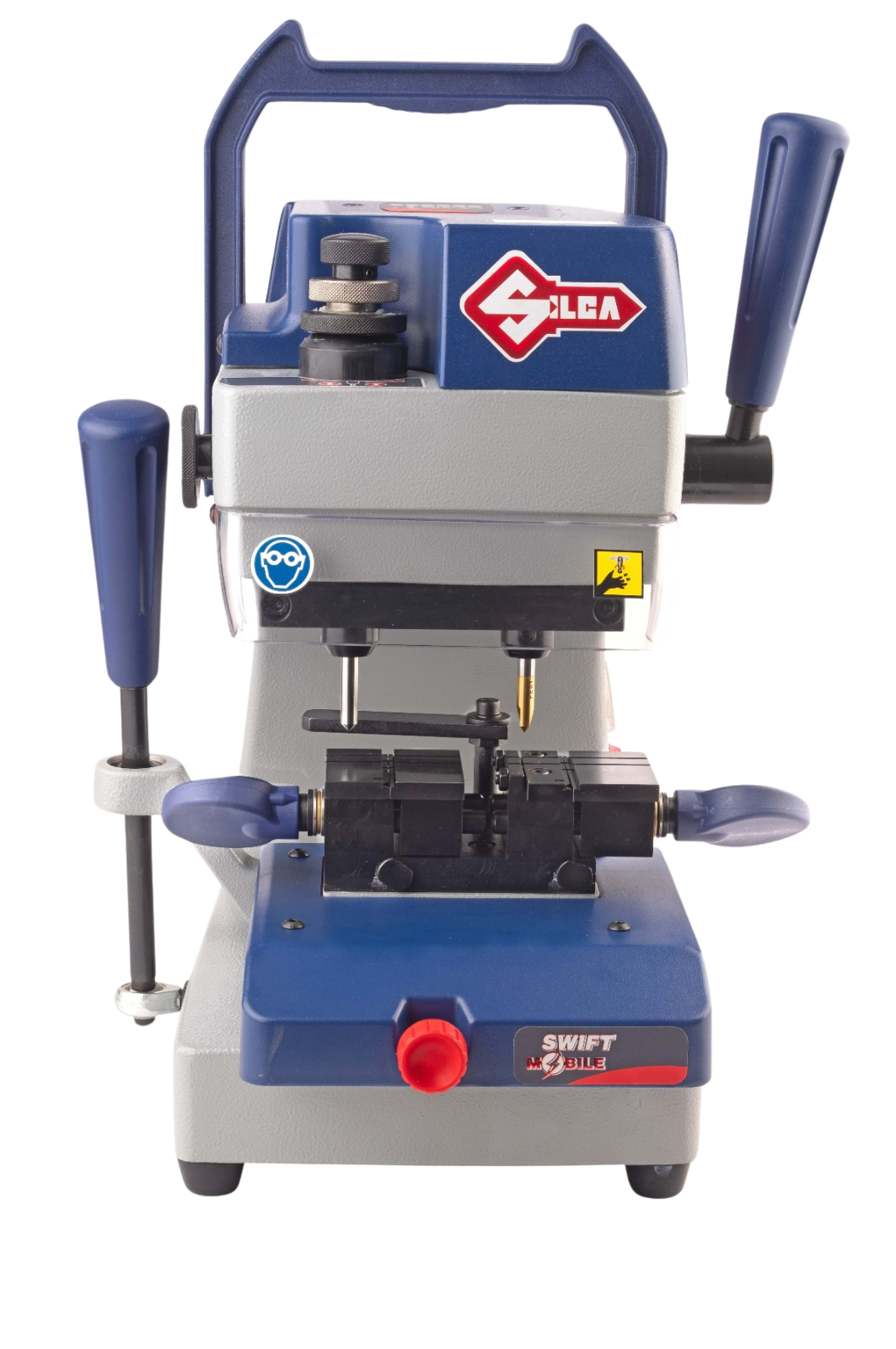

BatteryOperated mechanical key cutting for Dimple , Laser & Tubular Keys. Swift Mobileis a battery operated, mechanical key cutting machine for dimple,laser and tubular keys. Easy and comfortable to use and made with resistantand durable materials, Swift Mobile is reliable over time ensuring quality cutting results.Swift Mobile is easy to use and contains a quality PCB controlling thebattery status. Lightweight, durable and compact, it is perfect or small shops, and “on the go locksmithing”.







Downloads
Taggy Keys
Taggy Sequence 1
Taggy Sequence 2
Taggy Sequence 3
Taggy Sequence 4
Taggy Sequence 5
Taggy Keys
Taggy Sequence 1
Taggy Sequence 2
Taggy Sequence 3
Taggy Sequence 4
Taggy Sequence 5

Product details

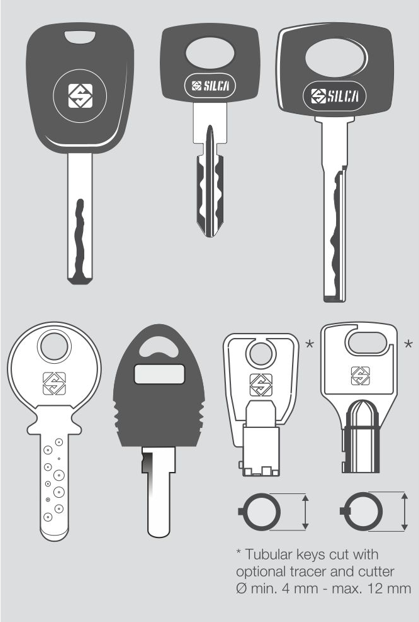

  • Swift Mobile is battery operated  mechanical key cutting machine for dimple keys with flat cuts, laser keys with internal, external, double external cuts and narrow stems and, with the use of the optional tracer and cutter, also tubular keys. It can also accommodate smaller laser keys with optional EG Adaptor
  • Perfect illumination of the work station: The integrated elongated lamp guarantees a perfect lighting of the working area.

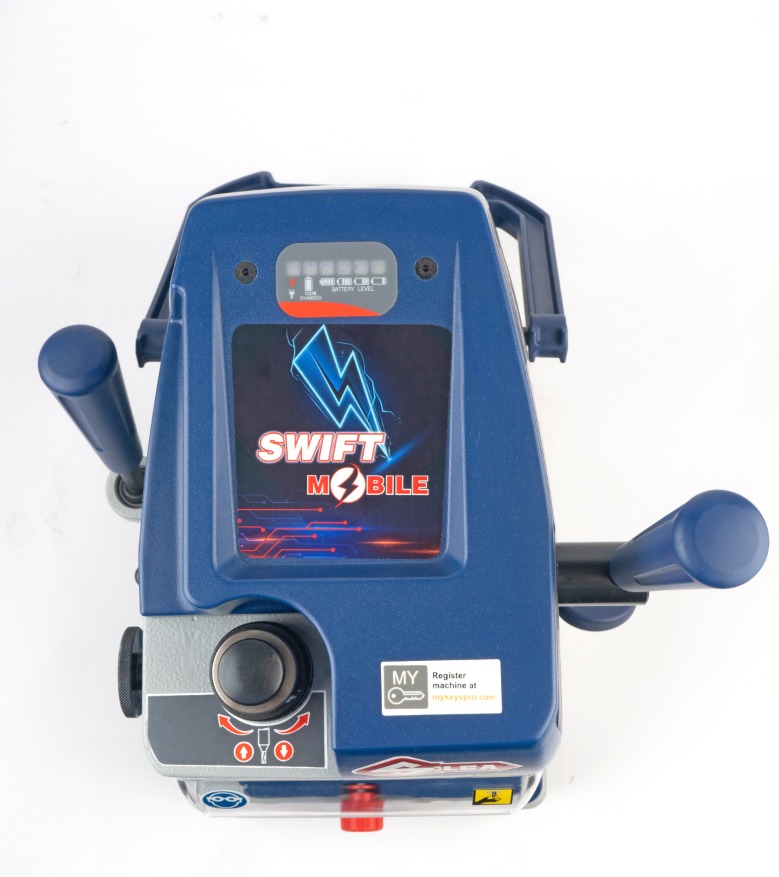

  • Battery operated for “on the go locksmithing : The machine is operated by a 2900 mAh, rechargeable battery. When the machine is fully charged it can duplicate up to 100 brass keys .Colored light indicators show the level of the battery and when it needs recharging.
  • Ergonomic and comfortable use: The levers , knobs &  handle of the machine are made of engineering plastics and, thanks to their ergonomic shape they guarantee comfortable grip and handling. The carriage shifting via linier bearing results in smooth movement & precision in key cuts

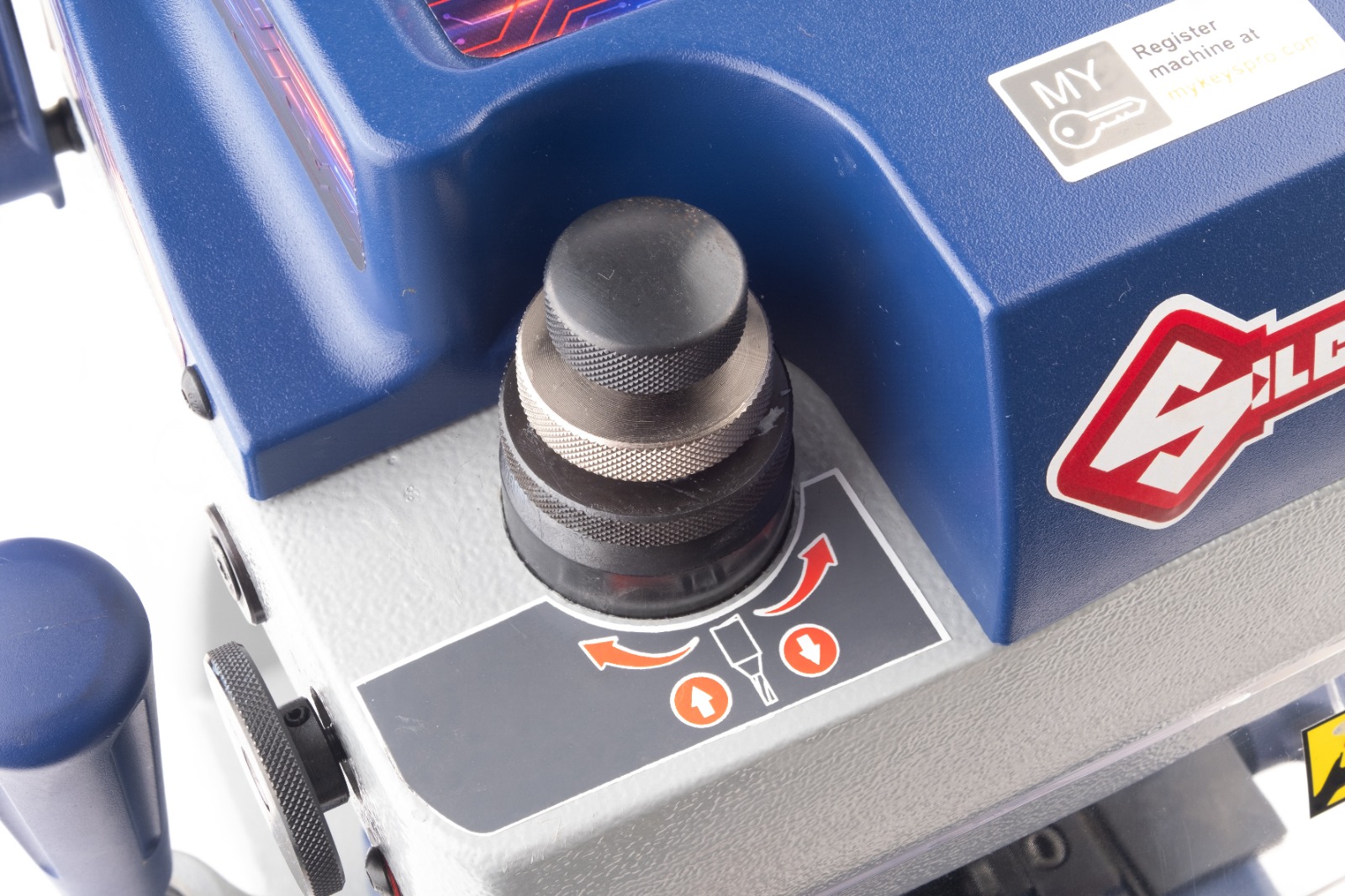

  • The machine is equipped with sprung tracer point and adjustment ring nut for the perfect calibration of dimple keys. Also Big knob for more torque to locking the tracer ensures quality cutting results even when original keys are worn out. The tracer ring nut is nickel plated.
  • Swift Mobile is lightweight, com- pact and made of top-notch components. The cutters provided are AlCrN coated plated for better wear resistance, while the motor has a longer life compared to most machines of the same category available on the market.Big knob for more torque to locking the tracer ensures quality cutting results even when original keys are worn out. The tracer ring nut is nickel plated.


  • Power supply: Li-Ion Battery 22,2V 2900 mAh
  • Power adaptor: Meanwell GST60A24-P1J - 24V - 2.5A
  • Cutter motor: 24VDC 120W
  • Cutter speed: 6000 rpm +/-10%
  • Cutter: AlCrN coated
  • Carriage movements: Carriage on linier bearing socarriage movement are very smooth
  • Runs (max length of cuts): 42 mm
  • Dimensions: Width: Dimensions: Width: 260 mm, Depth:285 mm, Height: 315 mm
  • Weight: 12 kg
